Specs& Systems: Roller Blind- Emmi

Basic Specs

[Size] Including headrail hardware
Can be customized within 280cm(W) × 300cm(H)
[Material] Polyester, Aluminum
[Cleaning] Non-washable on the surface, use a dry cloth, duster or a vacuum cleaner with a brush head to dust

■ Complete installation instructions and components attached



Sizes& Figures

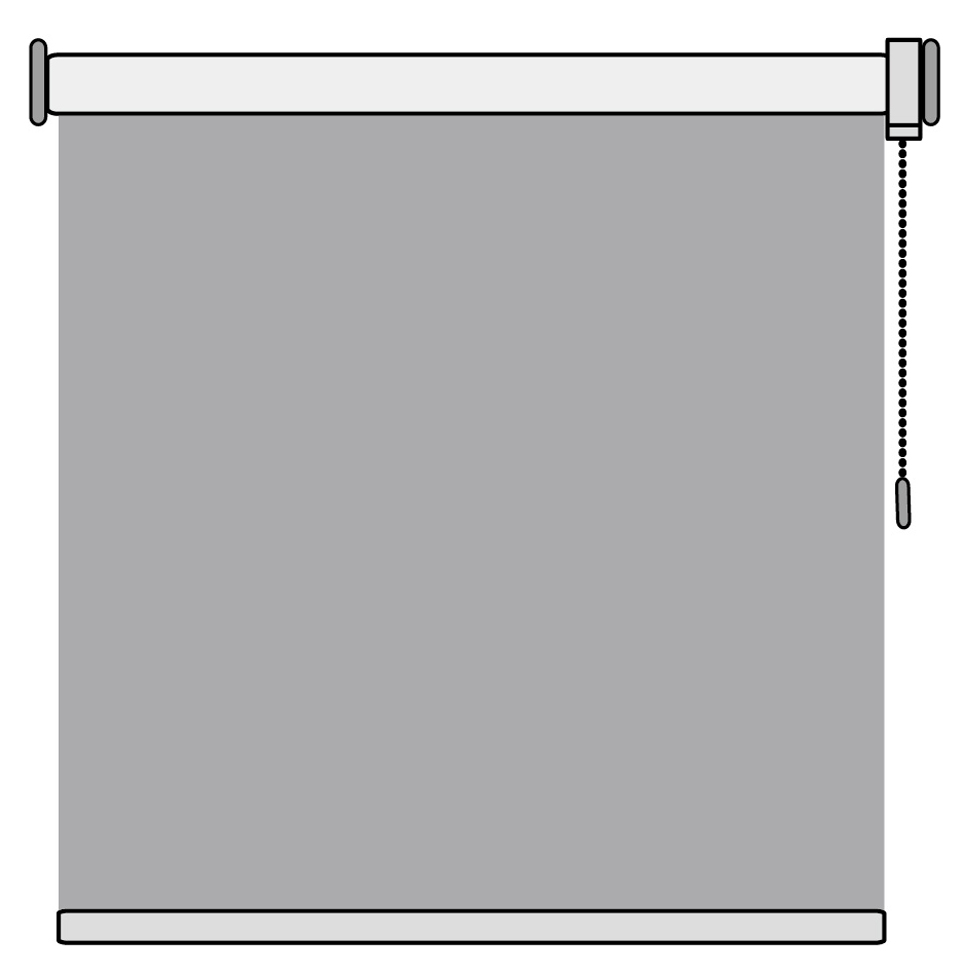

1. Simple Type (Unhidden Roll)



2. Delicate Type（With metallic cover for adornment and dust-proof)

■ Brackets and hardwares are included in the blind. The total thickness after installation, depending on the system sizes and directions of installation, is about 7.5cm~10cm.
■ S-type headrail system is applied with width below 180cm; M-type is applied with width above 180cm.
■ If the blind is installed in the curtain box or notch, the inner depth should be more than 8cm~12cm for smooth installation.
■ The covering area indents due to parts from left and right sides. Ballchain control: 2cm/ Bottom: 1cm.



Choosing operation

1. Ballchain loop（Safety guide enclosed）

2. Hydraulic Spring System

3. Motorized remote control


4. Motorized simple pull
　 No remote (Max W. 180cm) >> Operation Video

Color-matching Services

Bracket, headrail systems, and plastic ballchain- Four colors available: White/ Beige/ Grey( Metallic silver)/ Black.
Metal ballchian is available for purchase to create your own unique personality and brilliance.

Additional Purchase Services

■ Delicate metallic cover－Four colors available: White／Beige／Grey (Metallic silver)／Black
■ Metal Ballchain－Grey Nickle／Black Nickle／Satin Nickle／Old Brass／Copper, Iron nickle plated
■ Tassel－With ballchain loop. Design in Europe. Decorative tassel.
■ Hydraulic Spring System－Delicate type only, length of the string can be customized, Tassel- Metallic Silver enclosed
■ Motorized remote control－Simple type only. Minimum width: 75cm

Operation／Cleaning

Video：

Roller Blind

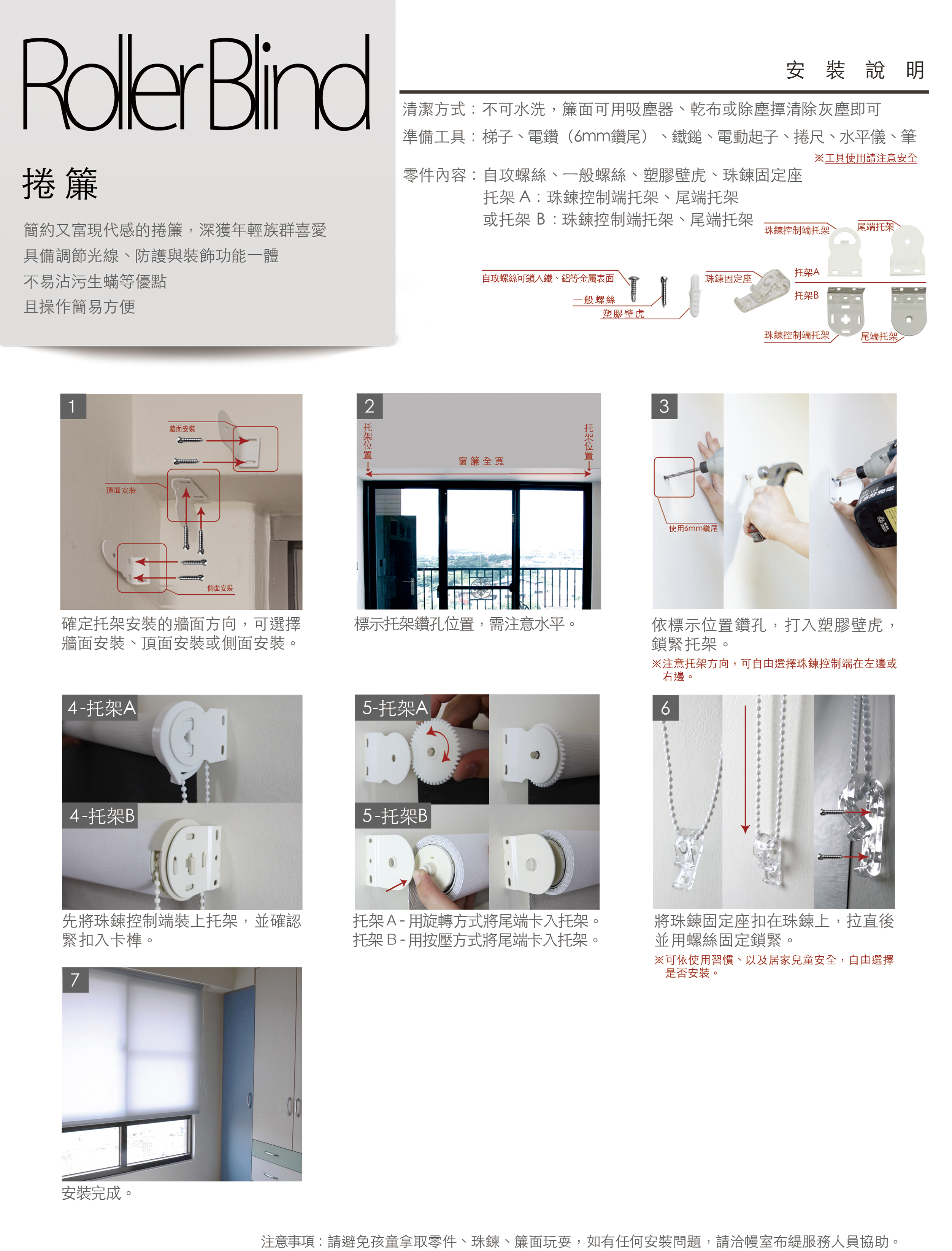

DIY Illustration of Customized Roller Blind

■ Tools: A ladder, an electric drill (with 6mm tail), a hammer, electric screwdriver, a measuring tape, a level and a pencil.

■ Components: Self-tapping screws, normal screws, plastic nylon anchors, safety hook, pin end, side cover of brackets, base cover of mounting brackets.

Steps of simple type of roller blinds:


1. Decide the method of fitting brackets: Face-fixing, Top-fixing or Side-fixing.



2.Mark reference holes to fix support bracket. Make sure that they are leveled.



3. Drill at the reference mark, nail plastic nylon anchors into the wall and secure the mounting brackets.



4. Push the bottom of the base cover into the notch of the bracket. It is securely locked when you hear “click” sound.

    *This installation is optional, depending on the space of the installation or aesthetic demands.





5-1. Make sure the end engraved with the word-“metal”  insert into the bracket, and it is securely locked after hearing “click” sound.

5-2. Place the end of the roller blind into side cover of brackets.

* The idler end (the opposite side of ball chain) is the direction of installing the end.



6. Make sure the the end of ballchain control engraved with word-“metal” is locked into the bracket. Hearing click sound means it is securely locked into the clutch.



7.  Insert the side cover of the bracket into the notch of bracket; hearing click sound means it is tightly locked into the side cover of the bracket.

**This installation is optional, depending on the space of installation site or aesthetic demands.



8. Fix ball chain on the safety hook and straighten it. Secure safety hook on the wall with screws.

**The installation is optional, depending on your habits and housing environment of child safety.



9. Installation complete

* Notice: Keep children away from accessories, pulling cords and slats. Any installation question, please contact MSBT staff for assistance.
